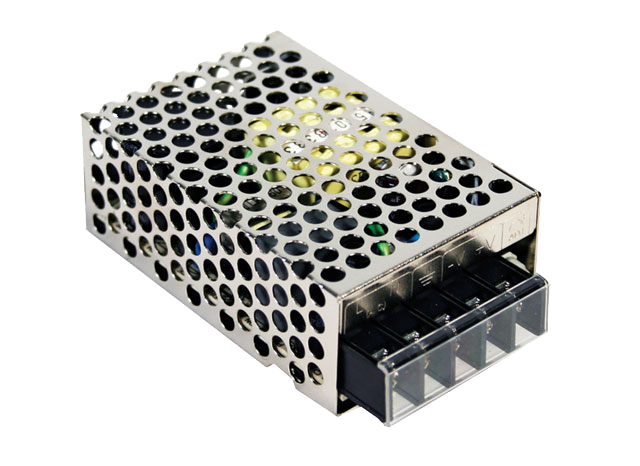

RS-25-12 منبع تغذیه 12 ولت 2.1 آمپر مینول

RS-25-12 (12V, 2.1A):

• AC Input Voltage Range: 85~264 VAC, 120~370 VDC
• Withstands 300 VAC Surge Input for 5 Seconds
• No Load Power Consumption <0.5 W
• Short Circuit, Overload, and Over Voltage Protection Included
• All using 105ºC long life electrolytic capacitors
• Cooling by free air convection
• High Operating Temperature — Up to 70°C
• Withstands 5 G Vibration Test
• 100% Full Load Burn In Tested
• DC Adjustment Range: 10.8 ~ 13.2 VDC
• Safety Standards: UL60950-1, TÜV EN60950-1 Approved
• Meets EN50082-2/EN61000-6-2 Heavy Industry Level
• Overload Protection: 110% – 180%
• Over Voltage Protection: 115% – 135%, Shut Off
• Over Temperature Protection: Shutdown O/P Voltage, recovers automatically after Temperature goes down
• Mean Time Before Failure: 3,992K hours min.
• Small Footprint with High Power Density
• Connection: Terminal Block for Input and Output
• Dimensions (L x W x H): 78*51*28 mm
• High efficiency, long life and high reliability
• 3 years warranty
