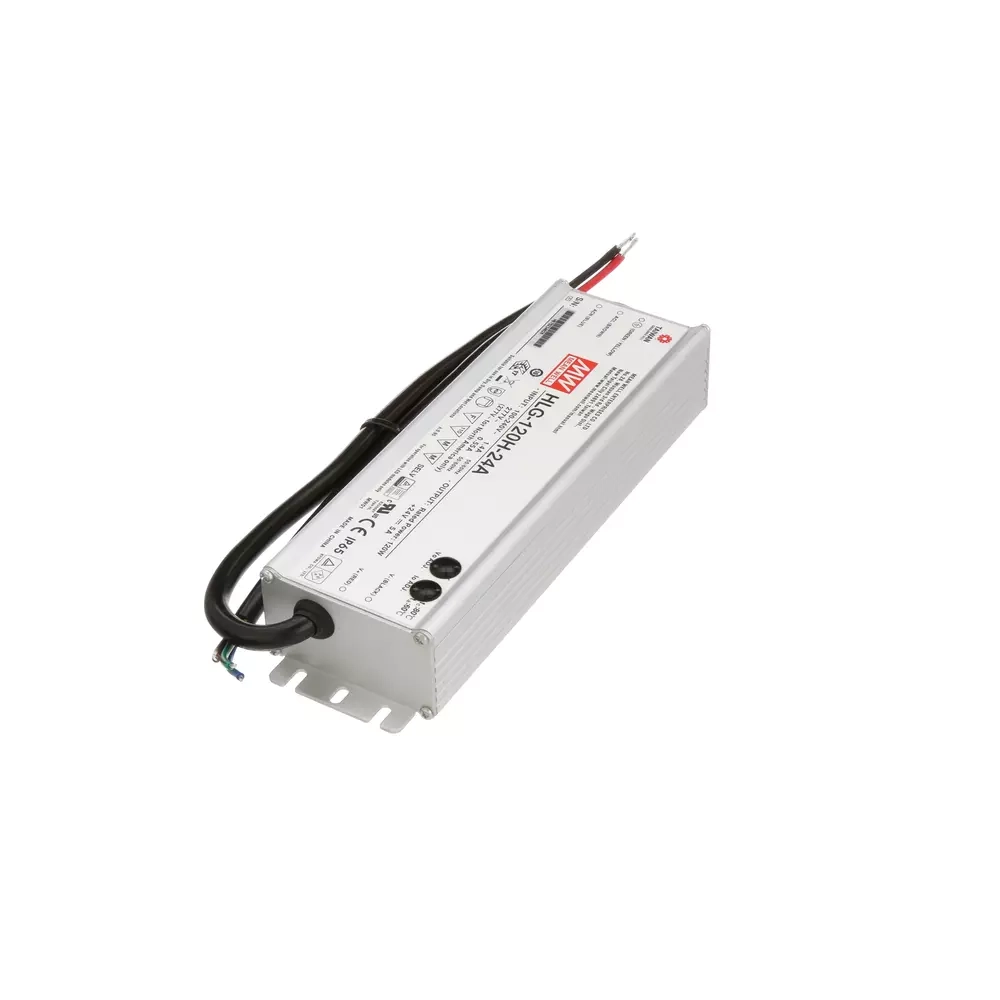

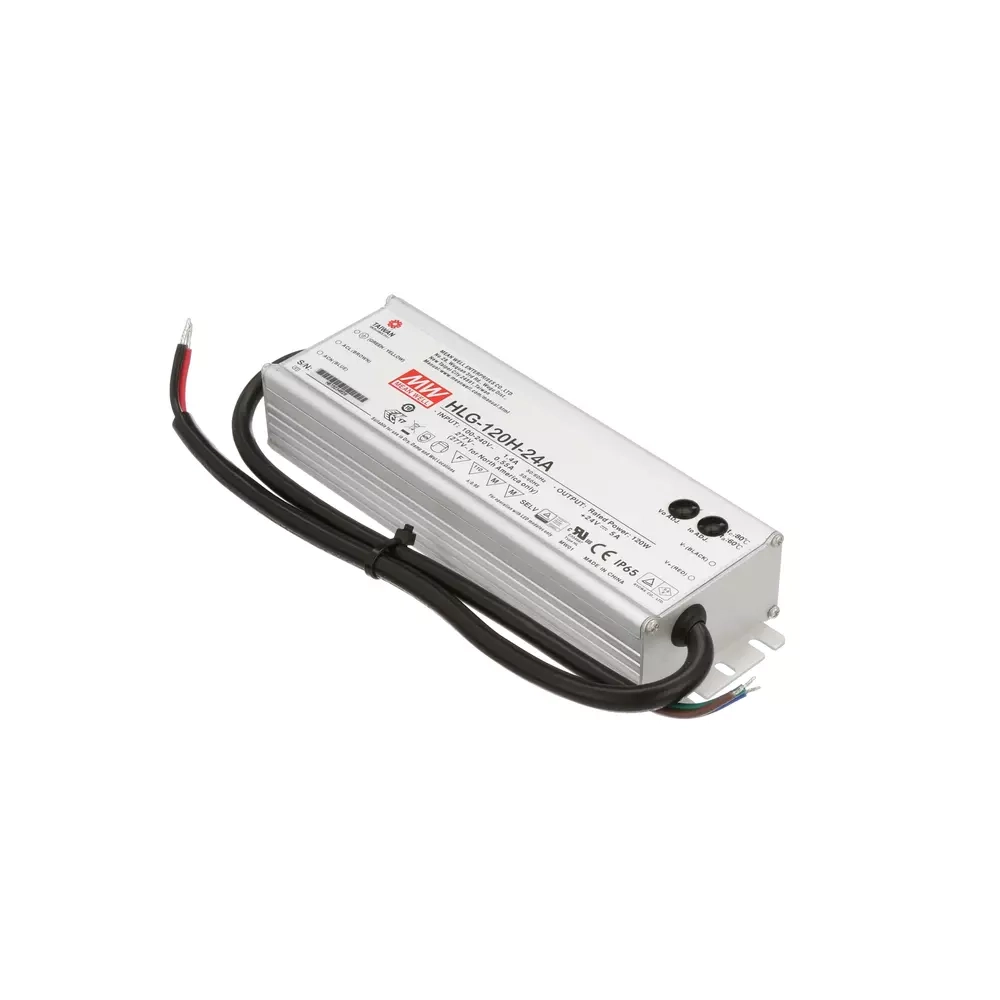

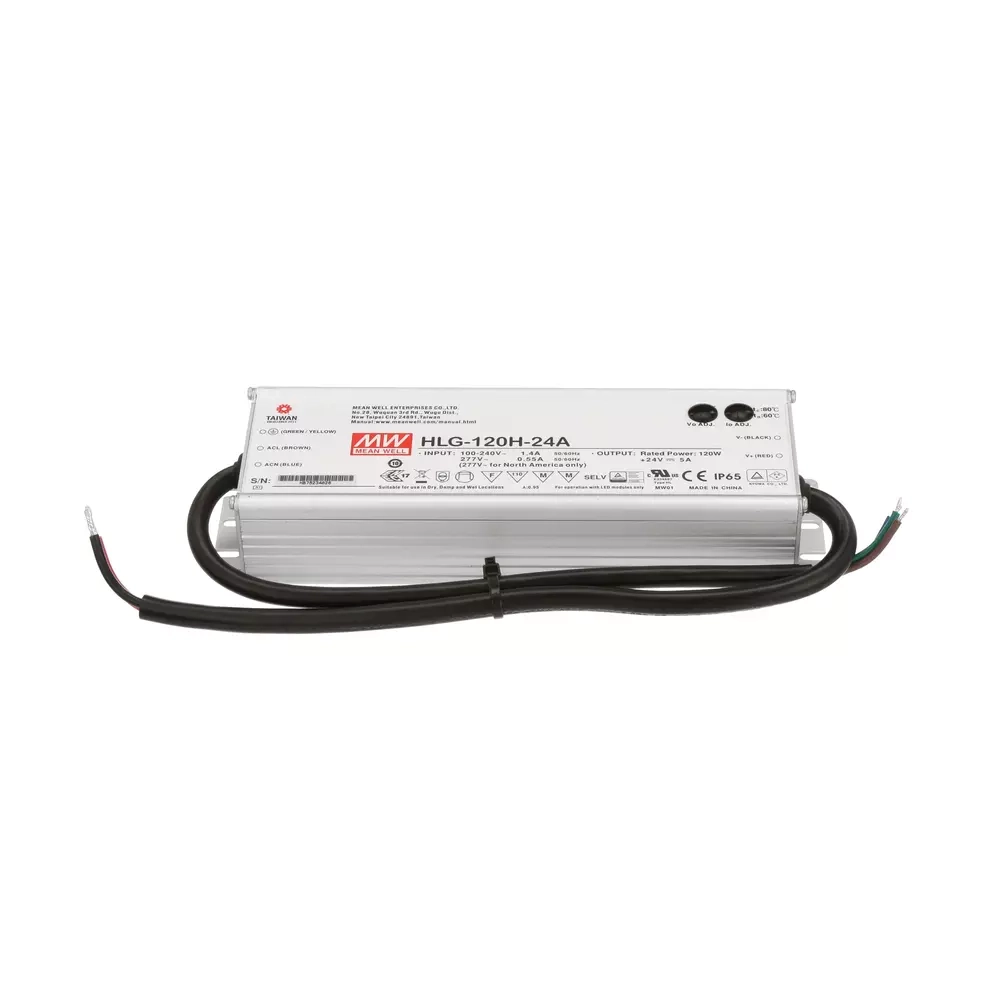

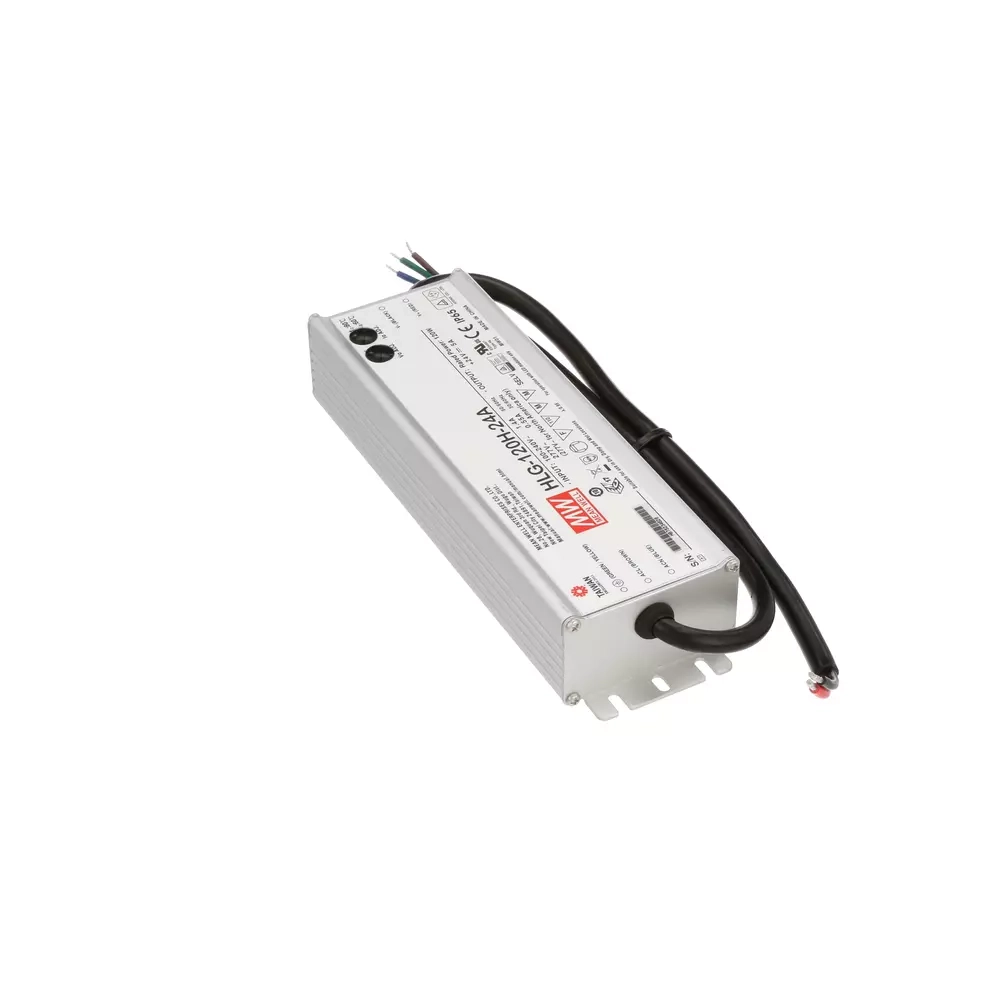

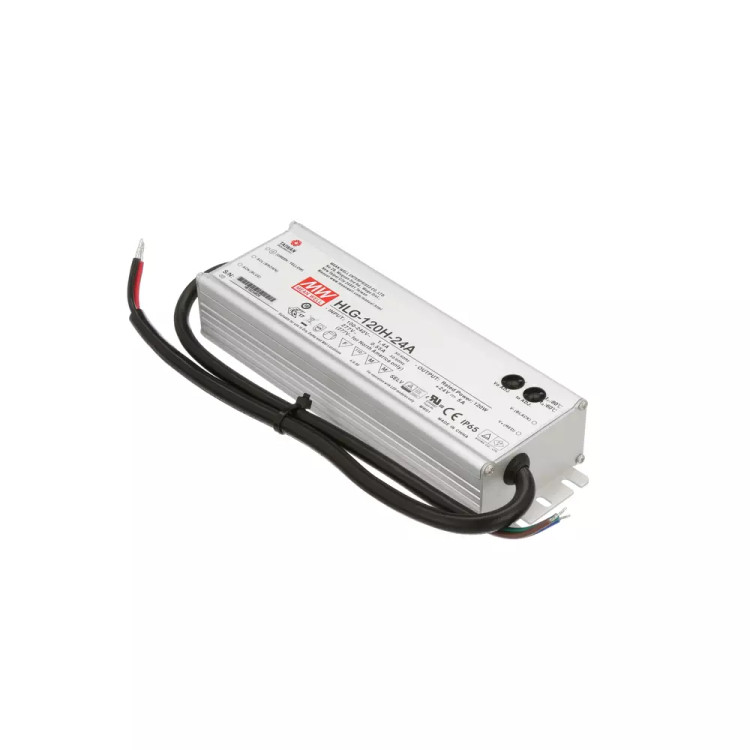

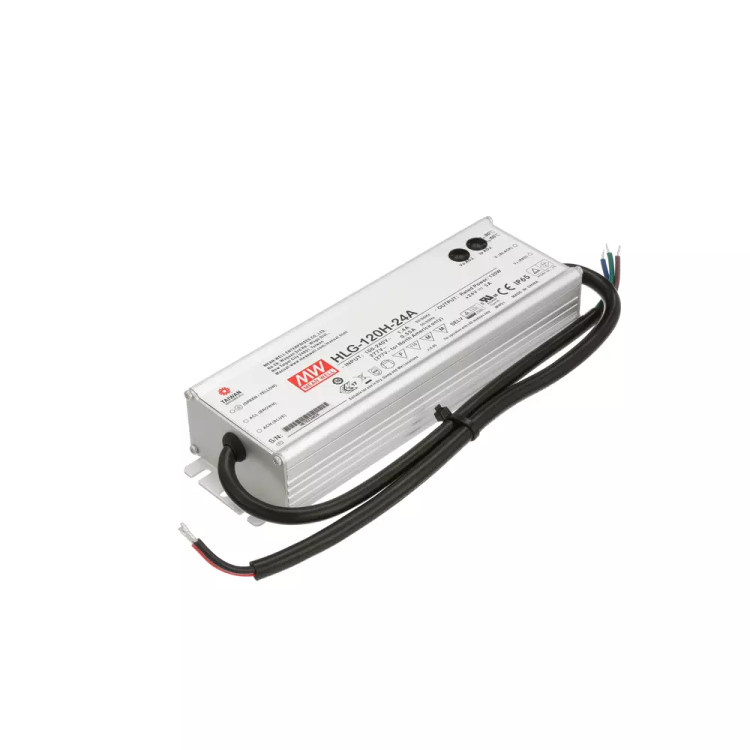

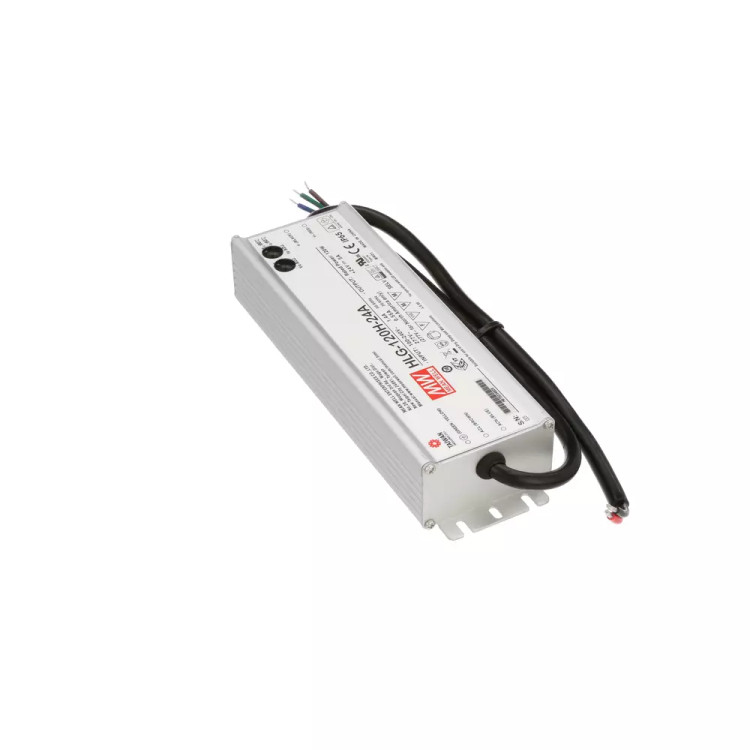

LED HLG-120H-36A درایور

MEAN WELL HLG-120H:

HLG-120H series is a 150W AC/DC LED driver featuring the dual mode constant voltage and constant current output. The HLG series power supplies are characterized by a sealed metal housing, so they can also be used outdoors. The HLG models are available in four versions, i.e. without the designation, A, B (with the cable outlet) or the C version (with an input-output connector for connecting cables). The models have the option of adjusting the voltage and output currents without opening the housing (through holes with plugs in versions A and C, or by connecting an external resistor, PWM signal or 1 ~ 10VDC voltage in version B). The entire series has a built-in active PFC function. They are designed to power a wide range of devices, including lighting and decorative LED systems, including individual LEDs, strips, modules, panels, halogen LED bulbs, etc.

Features:

• Constant Voltage + Constant Current mode output
• Universal input voltage: 90-305VAC; 127-431VDC
• Built-in active PFC function
• Metal housing design with functional Ground (class I)
• lP67/ IP65 rating for indoor or outdoor installations
• 3.75KV surge immunity in accordance with IEC61000-4-5
• Short-circuit, overload, overvoltage and thermal protection
• Output Voltage & Current adjustable via potentiometer
• Cooling by open air circulation
• No load / Standby power consumption <1W
• 3 in 1 dimming function in B version models (1 ~ 10VDC, PWM, resistor)
• Smart timer dimming
• working temperature -40 ~ + 90 ° C
• efficiency up to 93.5%
• compliance with a number of standards and certificates
• Typical lifetime > 62000 hours
• 7 years warranty

HLG-120H-36A Output Specs:

• DC VOLTAGE: 36V
• CONSTANT CURRENT REGION:  18 ~ 36 VDC
• RATED CURRENT: 3.4A
• RATED POWER: 122.4W
• RIPPLE & NOISE (max.): 200mVp-p
• VOLTAGE ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 33~40V
• CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 1.7~3.4A
• VOLTAGE TOLERANCE: ±1.0%
• LINE REGULATION: ±0.5%
• LOAD REGULATION: ±0.5%
• SETUP, RISE TIME: 1200ms, 50ms/115VAC  500ms, 50ms/230VAC
• HOLD up TIME (Typ.):  12ms/115VAC, 230VAC

HLG-120H-36A Input Specs:

• VOLTAGE RANGE: 90 ~ 305VAC
• FREQUENCY RANGE: 47 ~63HZ
• EFFICIENCY (Typ.): 93%
• AC CURRENT: 1.4A/ 115VAC  0.6A/ 230VAC   0.55A/ 277VAC

Applications:

• LED Street lighting
• LED architectural lighting
• LED bay lighting
• LED floodlighting
• Type “HL” for use in Class I, Division 2 hazardous (Classified) location

Model Encoding: [HLG-120-36…]

• Blank: IP67; Io and Vo fixed.
• Type A: IP65; Io and Vo adjustable through built-in potentiometer.
• Type B: IP67; 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance)
• Type AB: IP65; Type A & Type B
