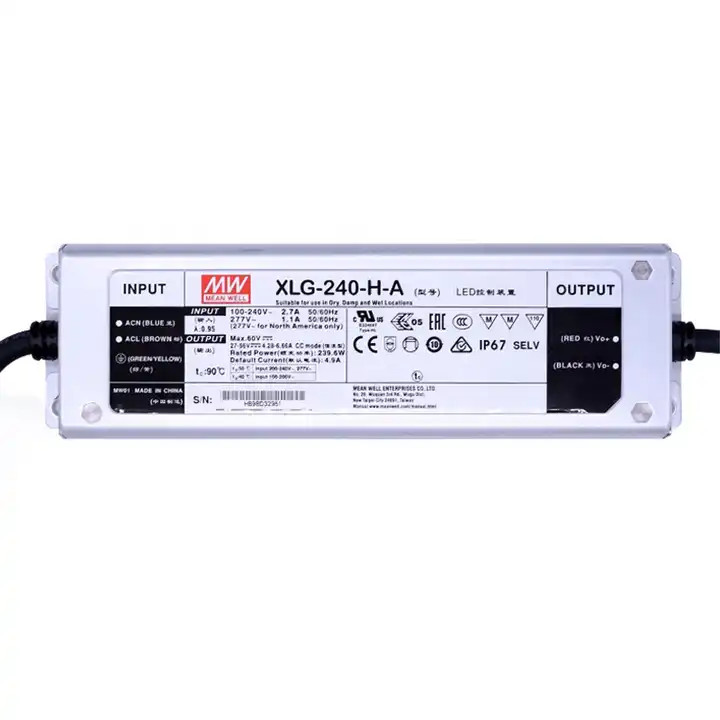

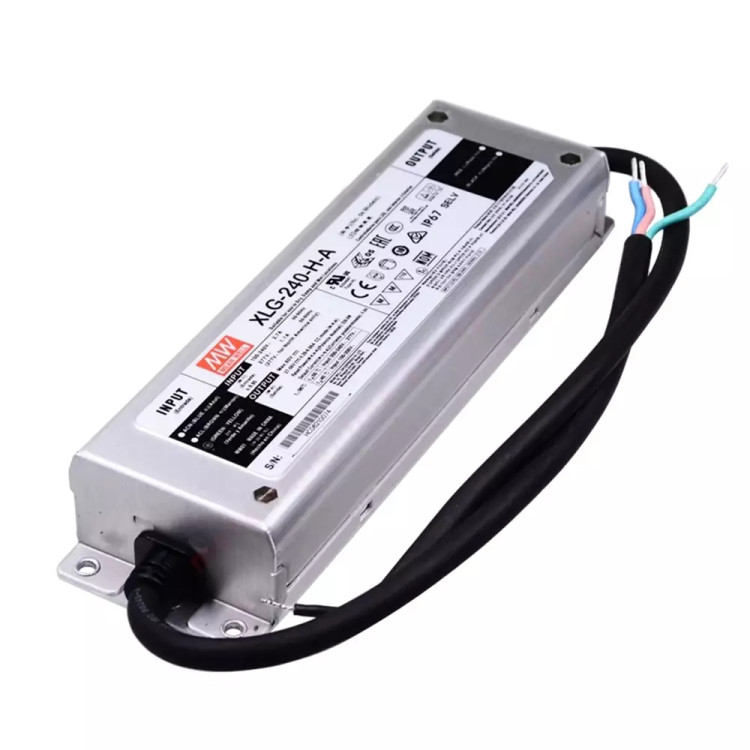

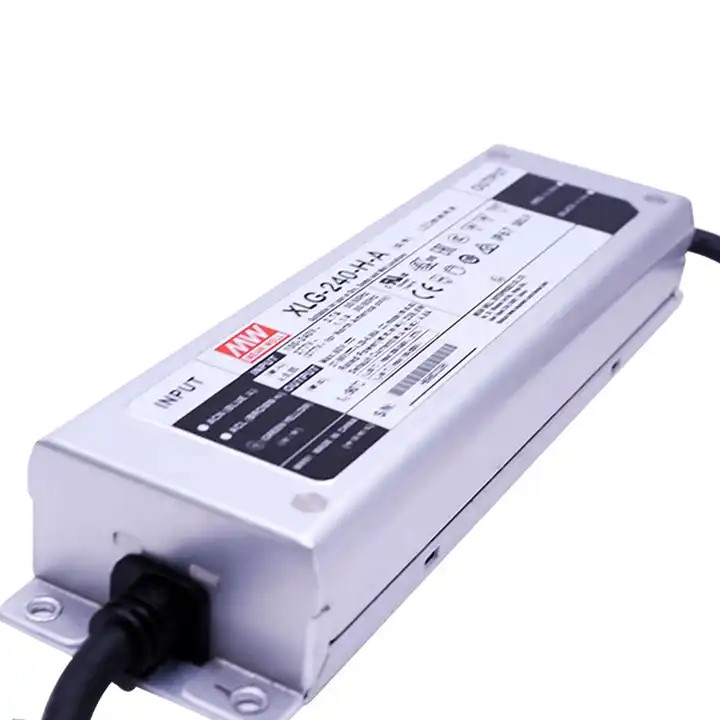

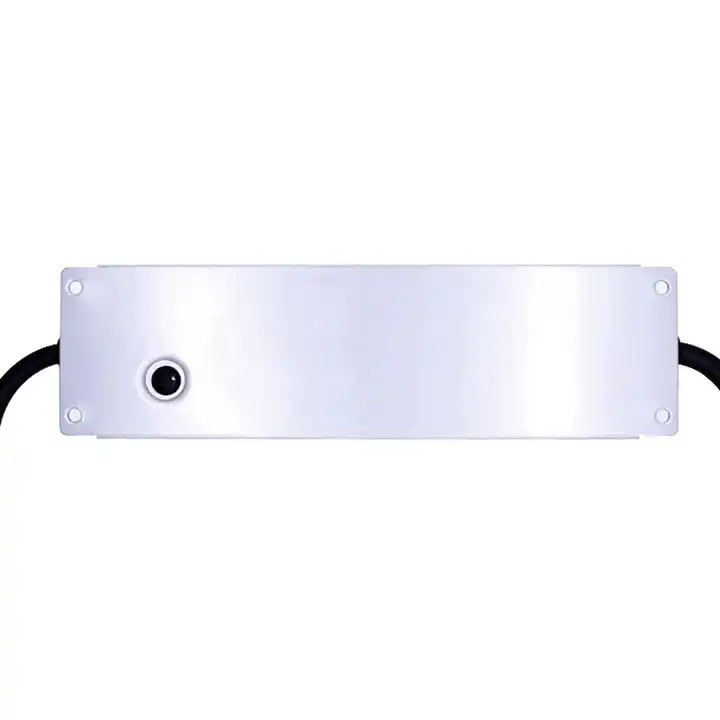

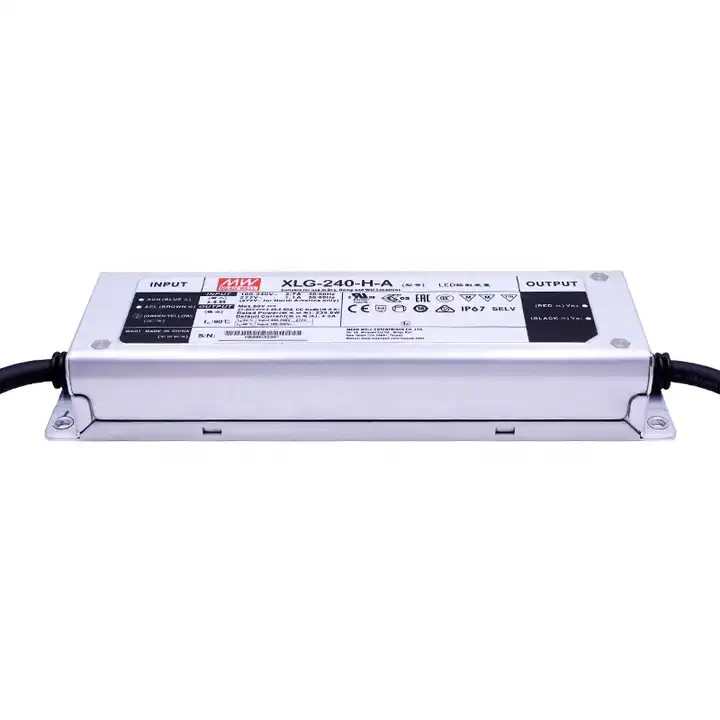

LED درایور XLG-240-H-A

XLG-240 Series:

XLG-240 series is a 240W LED AC/DC driver featuring the constant power mode. XLG-240 operates 100~305VAC and offers models with different rated current ranging between 700mA and 6.66A. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40°C ~ +90°C temperature under free air convection.

The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. XLG-240 is designed with the latest version of IEC61347/GB7000.1-2015 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the user and luminaire system safety during installation.

XLG-240 Features:

• Wide input range 100~305V AC( Class I)
• Input current 2.7A@115VAC, 1.3A@230VAC, 1.1A@277VAC
• Full power output at 70-100% Constant power mode operation
• Metal case with IP67, suitable for outdoor application
• Power Factor Correction (PFC)
• Surge protection with 6KV/4KV (10KV/6KV optional)
• Protection functions: Over voltage, short circuit, over current, over temperature
• 3 in 1 dimming function (Dim to off and Isolation design)
• DALI-2 models (DA2)
• Life time >50,000 hrs.
• 5 years warranty

XLG-240-H-A Specifications:

• DC Voltage: 27 to 56 V
• Rated current: 4.9 A
• Rated power: 239.6 W
• Current adjustment range: 2.4 A to 6.66 A
• Dimensions: 219 L x 63 W x 36 H (mm)

Applications:

• Skyscraper and commercial building lighting
• Street lighting
• Floodlights
• Stage lighting
• Fishing and marine lighting
• Horticulture lighting
• Bay lighting
• Type HL for use in Class I, Division 2

Available models:

• XLG-240-H-A
• XLG-240-H-AB
• XLG-240-L-A
• XLG-240-L-AB
• XLG-240-M-A
• XLG-240-M-AB
• XLG-240-L-DA2
• XLG-240-M-DA2
• XLG-240-H-ADA
