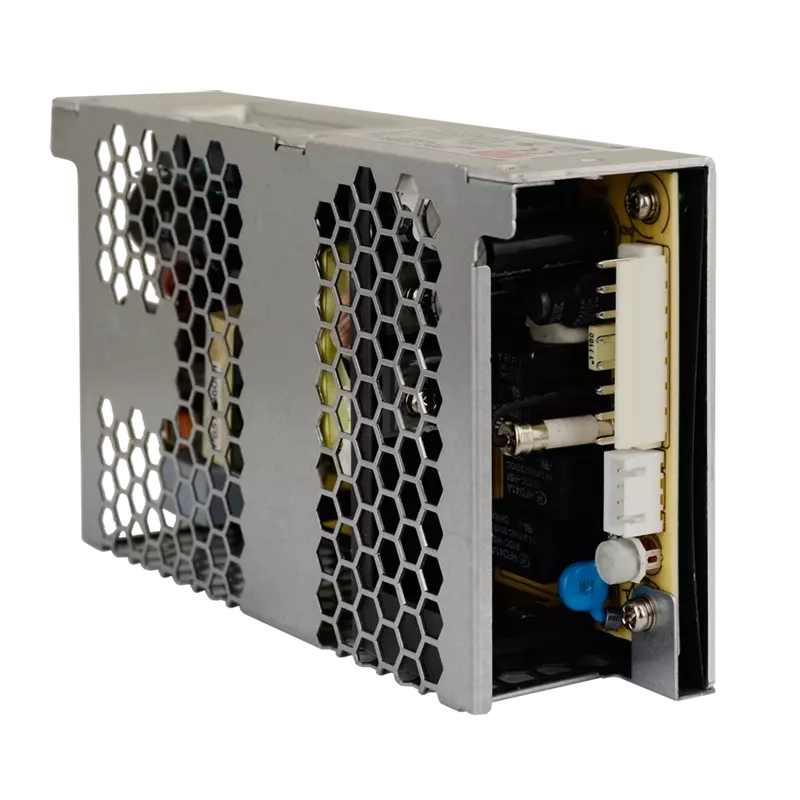

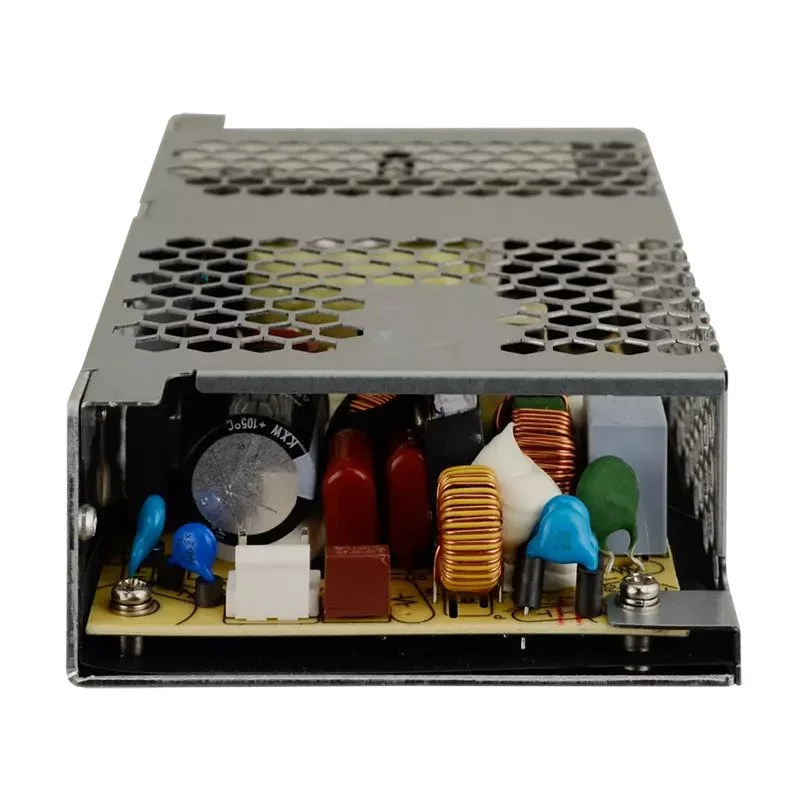

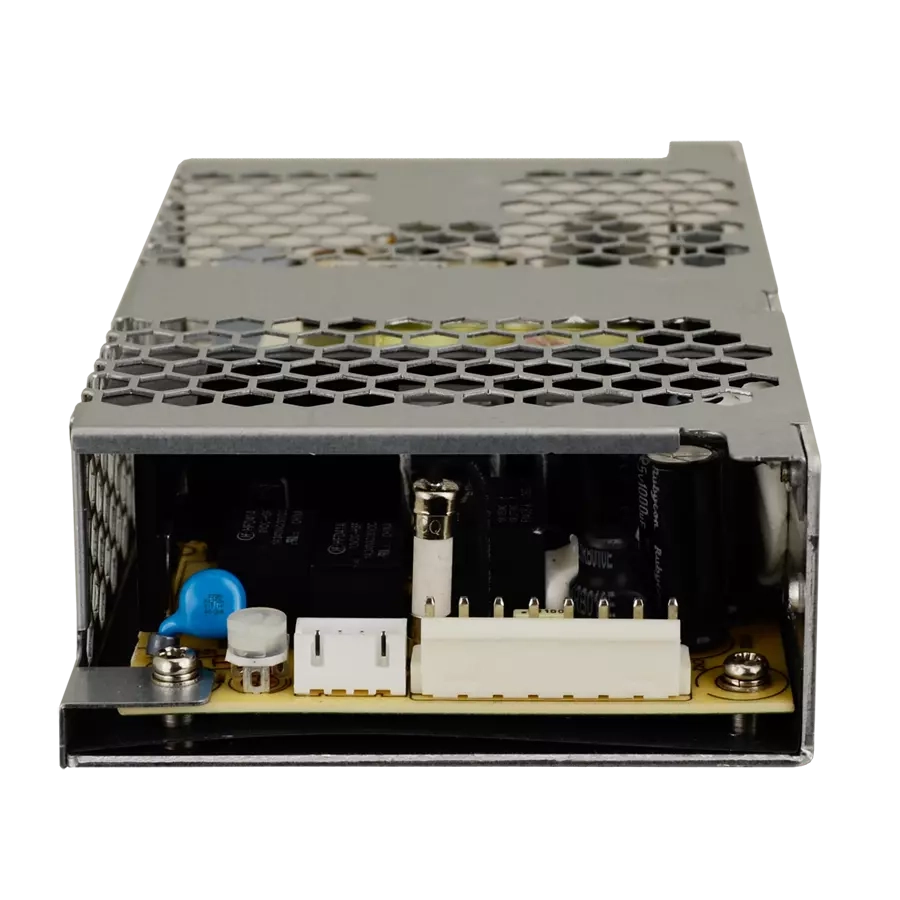

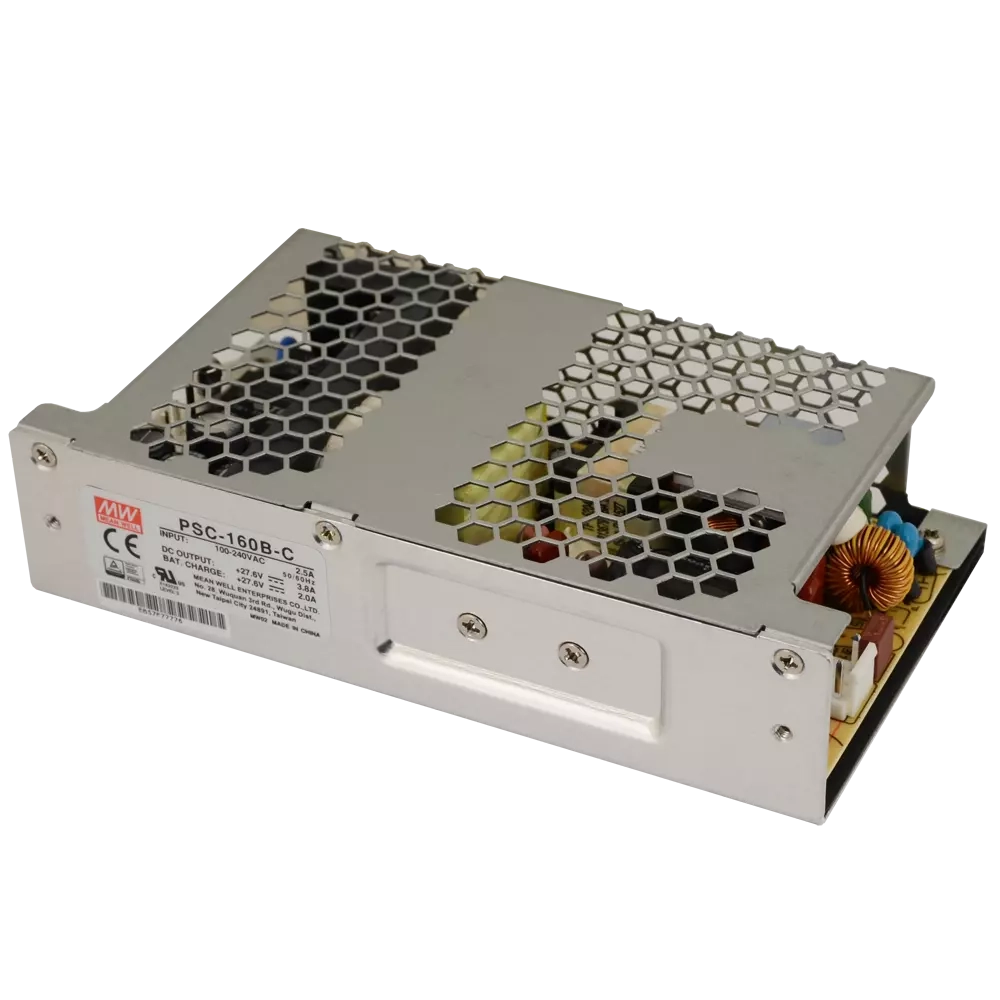

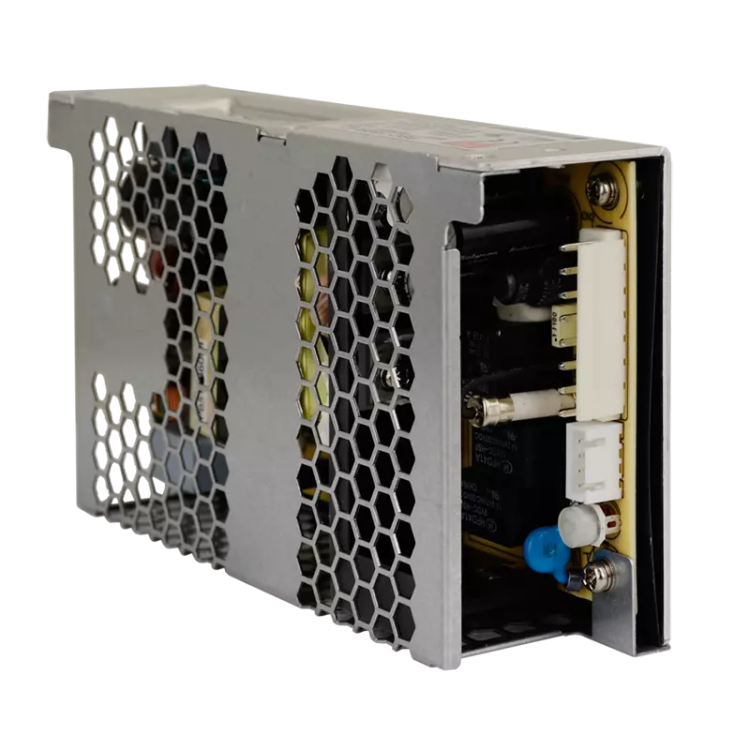

PSC-160B-C منبع تغذیه
برند
MEAN WELL
توان خروجی
160 وات
قابلیت تنظیم خروجی
خروجی CH1 در محدوده 24 ~ 29 VDC بوسیله پتانسیومتر داخلی
جریان خروجی (منبع تغذیه)
3.8 آمپر
جریان خروجی (شارژر باتری)
2 آمپر
فن
ندارد
طریقه نصب
Enclosed
وزن
450 گرم
گارانتی
2 سال
MEAN WELL PSC Series:
The PSC Security series power supplies without a casing (or with a partial casing) are intended for operation in monitoring systems, access control, alarm systems, etc. Models PSC-35, PSC-60, PSC-100 and PSC-160 with an external battery can work as UPS. Discharge protection avoids over-discharging the battery. The lack of a housing gives a lot of freedom to install power supplies inside the devices, and the input and output connectors allow you to connect the cables.
The series PSC have built-in UPS function so that in case of AC input loss, it switches to battery and maintain output continuously. When there mains power is available, the controller gives a stable output while charging the battery at the same time. In case of failure of mains power, the unit maintains the output fed from the battery. These power supplies are suitable for security applications, access control and any application that must continue to function even with a power outage.
These are protected against overloads, short-circuit in the output, output over voltage, low battery and reverse battery polarity (by fuse). Also feature alarms by signal: TTL open collector which alert us in case of network failure or when the output voltage is lower than a certain value, indicating that the capacity of the battery is low.
PSC-160B Features:
- Single Output 2 Channel Security Power Supply 27.6 Volts 3.8/2 Amps 160 Watts (Enclosed Type)
- Universal AC input / Full range 90-264VAC, 124-370VDC
- Built-in active PFC function
- Protections: short circuit, over voltage, overload
- Battery low protection/ Battery reverse polarity protection by fuse
- Cooling by free air convection
- adjustable output voltage 27.6V: 24 ~ 29
- AC OK relay output and low battery charge
- small size, high efficiency
- version ‘C’ – with housing
- working temperature from -20 ~ + 70 ° C
- compliance with many standards and certificates
- Output Power (W): 160
- Ripple & Noise (mV p-p): 240
- Load Regulation (±): 0.5%
- Line Regulation (±): 0.5%
- Efficiency: 90%
- Size (L x W x H) 155 X 85 X 37 (mm)
- 2 years warranty
Available models:
- PSC-160A; 13.8V 11.6A, 13.8V 4A
- PSC-160B; 27.6V 5.8A, 27.6V 2A
- PSC-160A-C; 13.8V 11.6A, 13.8V 4A
- PSC-160B-C; 27.6V 5.8A, 27.6V 2A
منبع تغذیه مدل PSC-160B-C از شرکت مین ول (Mean Well) یک منبع تغذیه AC-DC با توان خروجی 160 وات است که بهصورت اوپن فریم (بدون قاب) طراحی شده و دارای قابلیت شارژ باتری (عملکرد UPS) است.
ویژگیهای کلیدی:
- ورودی: محدوده ولتاژ ورودی 90 تا 264 ولت AC (ورودی جهانی).
- خروجی: ولتاژ خروجی 27.6 ولت DC با جریان 3.8 آمپرو.
- شارژ باتری: خروجی شارژ باتری با ولتاژ 27.6 ولت DC و جریان 2 آمپر.
- حفاظتها: محافظت در برابر تخلیه کامل باتری، حفاظت در برابر اتصال معکوس باتری و در برابر اتصال کوتاه، اضافه بار، اضافه ولتاژ و کاهش ولتاژ باتری محافظ است.
- سیگنالهای هشدار: دارای سیگنالهای هشدار برای وضعیت AC OK و باتری ضعیف.
- خنکسازی: خنکسازی با جریان هوای آزاد (بدون فن).
- بازدهی: بازدهی عالی، طول عمر و قابلیت اطمینان بالا از ویژگیهای اصلی RSC است.
این منبع تغذیه بهویژه برای کاربردهای امنیتی هم بوده، بهطوریکه در صورت قطع برق AC ورودی، توان خروجی از طریق باتری تأمین میشود.
دمای این منبع تغذیه از منفی 20 الی مثبت 70 درجه سانتیگرا است.
ابعاد (طول x عرض x ارتفاع) بر حسب میلی متر 37x 85 x 155 است.
این منبع تغذیه دارای 2 سال گارانتی است و از پشتیبانی نمایندگی مینول در ایران بهره مند است.
