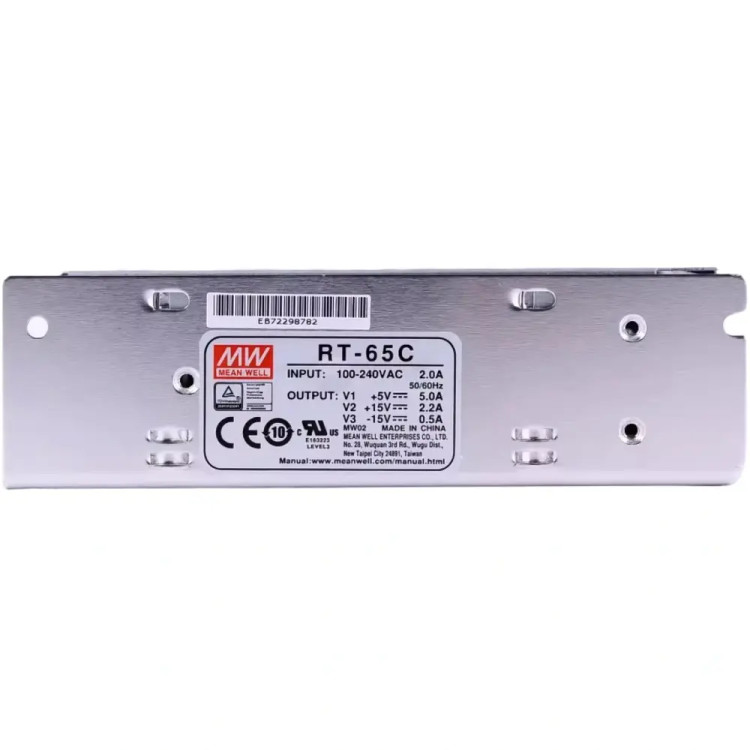

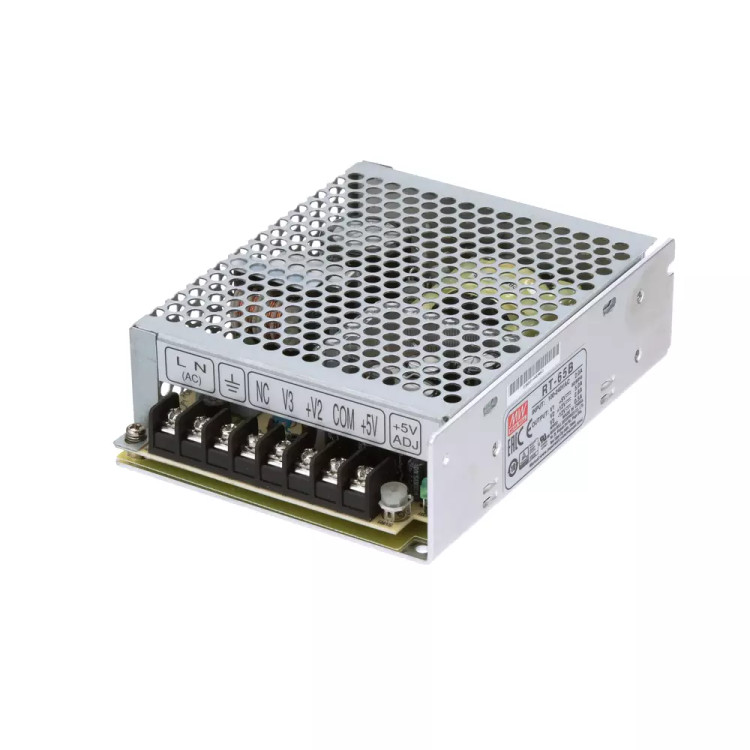

RT-65C منبع تغذیه سه خروجی مینول

MEAN WELL RT-65C:

MEAN WELL RT-65C has 3 outputs with different voltages, so it can be used in non-standard telecommunications and industrial applications.

RT-65C Features:

• Universal AC Input voltage 88-264VAC, 125-373VDC
• 105 °C long-life electrolytic capacitors
• Protections: short circuit, overvoltage and overload protection
• Withstand up to 300VAC at input for 5 seconds
• Meets the standards for heavy industry EMS EN50082-2 / EN61000-6-2
• Vibration resistance up to 5G
• Output adjustment range: -5% ~ + 10% CH1
• Working Temperature: -25°C ~ 70°C
• Small size, high power efficiency
• Cooling with free air circulation
• Minimum Isolation Voltage: 3000V
• Approvals: UL, CUL, TUV, CB, CE, EN, EAC

RT-65C other Features:

• Dimensions: 129 x 98 x 38 mm
• Style: Multiple Output
• Number of Outputs: 3
• Power Rating: 65.5 W
• CH1 Output: 5 VDC
• CH1 Output Current: 5 A
• Additional Output Voltages: 15, -15 VDC
• Efficiency: 77%
• Input Frequency: 47 Hz to 63 Hz
• Maximum Input Current: 2 A
• Output Connector Type: Screw Terminal Block
• Output (CH 1): 5 VDC / 5A
• Output (CH 2): 15 VDC / 2.2A
• Output (CH 3): -15 VDC / 0.5A
• Possibility of installation on a DIN rail (using adapters)
• 3 years warranty
