NTS-1200-248EU اینورتر سینوسی
برند
MEAN WELL
توان خروجی
1200 وات
دامنه ولتاژ DC ورودی
40 تا 66 ولت DC
ولتاژ AC خروجی
200 / 220 / 230 / 240 VAC قابل انتخاب با سوئیچ
فن
دارد
طریقه نصب
Enclosed
وزن
3/3 کیلوگرم
گارانتی
۳ سال

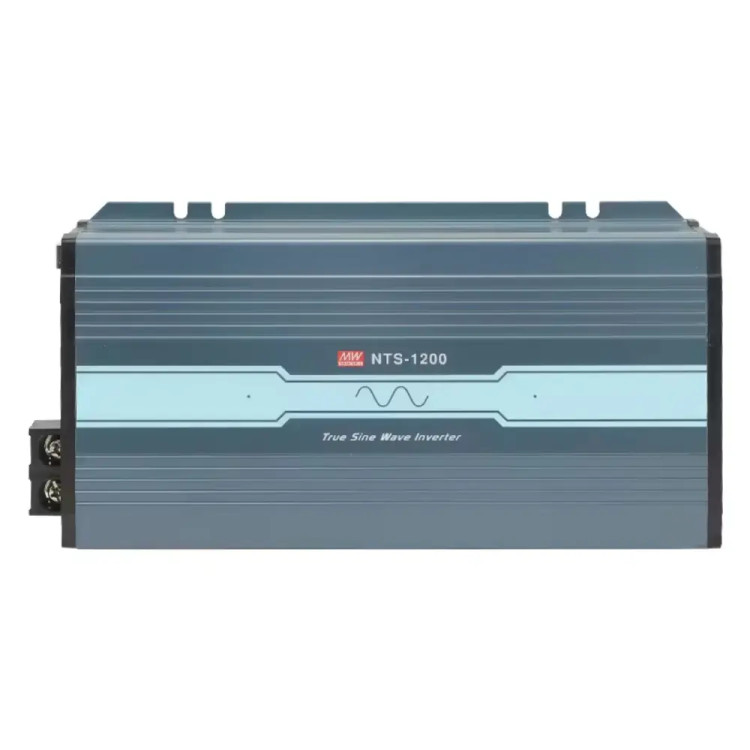

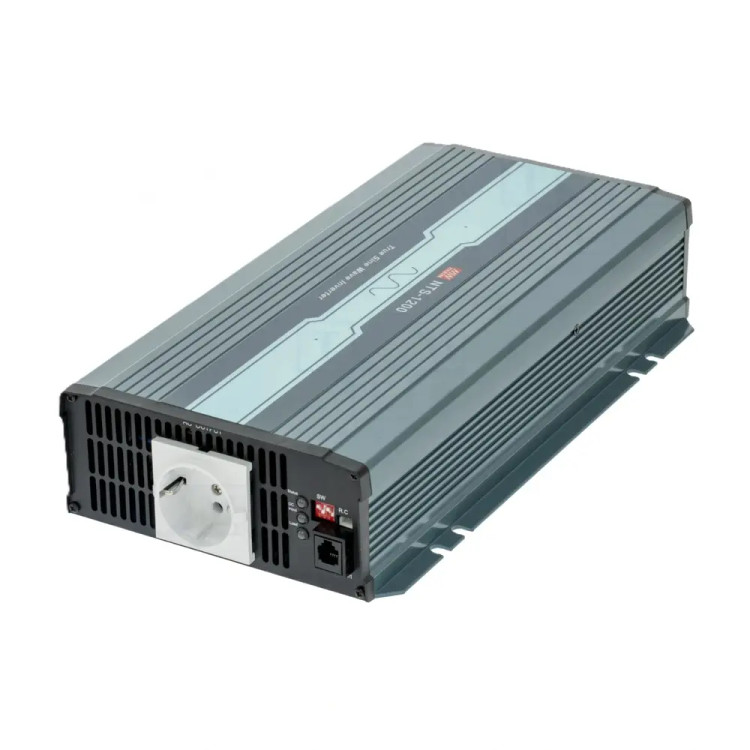

Mean Well NTS-1200:
230VAC Output 1200W True Sine Wave DC-AC Power Inverter Europe Receptacle 48VDC 30A Input
NTS-1200 is a 1200W highly reliable off-grid true sine wave DC-AC power inverter. Its key features include: digital design with MCU control, streamlined control circuitry that quickly responds to environmental changes and improves reliability, high quality fan with low acoustic noise, 2000W peak power, adjustable AC output voltage and frequency, -25~+70℃ wide operating temperature range, complete protection features, and etc. Combined with batteries, the NTS-1200 is suitable for use in residential, commercial, marine, automobile, mine, construction site, and remote areas with no access to utility power, and the output can be used to power fans, TV, radio, phone charger, PC/laptop, lighting, induction stove, air conditioner, electromechanical tool, communication equipment, power distribution cabinet, outdoor camping equipment, marine AC power, factory equipment, and etc.
NTS-1200-248EU Features:
- True sine wave output (THD <3%)
- High surge power up to 2000W
- Temperature controlled cooling fan
- AC output voltage and frequency selectable by DIP switch
- No load dissipation <1.5W max. at standby saving mode
- -25°C to +70°C wide operating temperature
- Power ON-OFF remote control

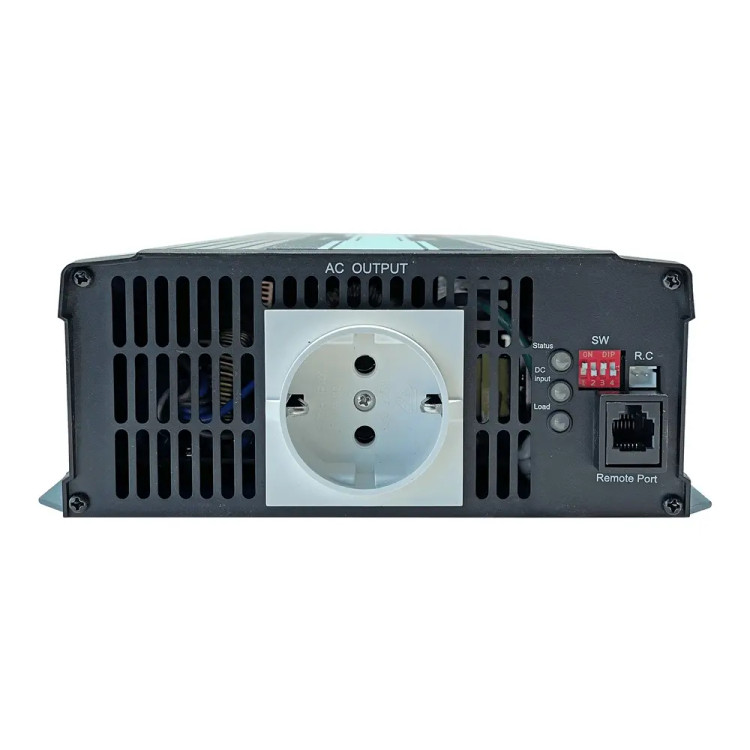

- Front panel indicator for operation status
- Protections:

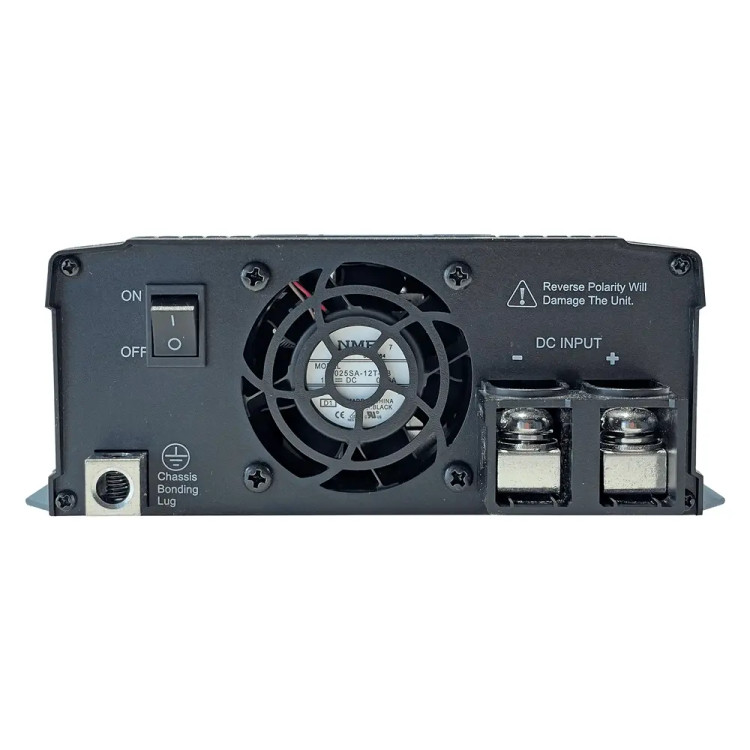

- Input: Reverse polarity, DC low alarm, DC low shutdown, Over voltage
- Output: Short circuit, Overload, Over temperature
- Battery over discharge protection (low voltage disconnect)
- Suitable for lead-acid or li-ion batteries
- Remote controller (IRC1, IRC2, IRC3 accessory sold separately, see datasheet)
- Support RS-232 communication (Communication cable order no.: DS-RJ11-RS232, sold separately)
- Conformal coating
- 3 years warranty
AC Output:
- Rated Power: 1200 W; 1380 W (over rated power, 3 min.); 1800 W (peak power, 10 sec.); 2000 W (surge power, 30 cycles)
- AC Voltage: 200 / 220 / 230 / 240 VAC, selectable by DIP switch (230VAC is default)
- Frequency: 50 / 60 Hz, selectable by DIP switch (50 Hz is default)
- Output Connection: Europe Receptacle
DC Input:
- DC Voltage: 48 VDC
- Voltage Range (typ.): 40 VDC to 66 VDC
- DC Current: 30 A
- Efficiency: 93%
- Battery Types: Lead Acid or Li-Ion
- Size: 333 x 184 x 70mm
- Agency Approvals: CB, CE, FCC, EN, EAC, UKCA, DEKRA
Applications:
- Mobile device
- Home and office appliance
- Portable equipment
- Vehicle
- RV
- Yacht
- Off-grid solar power system
- Wireless network
- Telecom or datacom system
اینورتر NTS-1200-248EU با توان 1200 وات و خروجی موج سینوسی واقعی، گزینهای مناسب برای تأمین برق در محیطهایی است که به برق شهری دسترسی ندارند یا نیاز به پشتیبان برق دارند.
مزایا
-
خروجی موج سینوسی واقعی: مناسب برای تجهیزات حساس مانند لپتاپ، تلویزیون، و ابزارهای صنعتی.
-
فن خنککننده کنترلشده با دما: برای کاهش نویز صوتی و افزایش طول عمر دستگاه.
-
حفاظتهای کامل: شامل حفاظت در برابر اتصال معکوس، افت یا افزایش ولتاژ DC، اتصال کوتاه، اضافه بار، و افزایش دما.
-
قابلیت کنترل از راه دور: پشتیبانی از کنترل از راه دور (IRC1، IRC2، IRC3) و ارتباط RS-232 برای مانیتورینگ و کنترل.
-
مصرف پایین در حالت آماده به کار: کمتر از 1.5 وات در حالت صرفهجویی.
-
پوشش محافظتی: دارای پوشش محافظتی برای افزایش مقاومت در برابر شرایط محیطی.
کاربردها
این اینورتر برای استفاده در محیطهای مختلفی مناسب است، از جمله:
-
سیستمهای خورشیدی مستقل از شبکه.
-
وسایل نقلیه مانند خودروها و قایقها.
-
مناطق دورافتاده بدون دسترسی به برق شهری.
-
تجهیزات اداری و خانگی مانند کامپیوتر، تلویزیون، و لوازم آشپزخانه.
-
ابزارهای صنعتی و تجهیزات مخابراتی.
-
مجهز به فن با کنترل ON-OFF برای خنک سازی
گارانتی
این منبع تغذیه دارای 3 سال گارانتی است و از پشتیبانی نمایندگی مینول در ایران برخوردار است.
