48-HEP-600C شارژر
برند
MEAN WELL
توان خروجی
600 وات
ولتاژ خروجی
48 ولت
جریان خروجی
0/5 آمپر
فن
ندارد
طریقه نصب
Enclosed
وزن
3.9 کیلوگرم
گارانتی
6 سال
HEP-600C Charger:
HEP-600C series is an AC-to-DC battery charger providing up to 600W, designed with aluminum case and fully potted by silicone. It features the high efficiency (up to 95.5%), waterproof and low no-load power consumption (<0.5W) at remote OFF. Incorporating state of the art design, the fan-less HEP-600C is capable of working under high-vibration (10G), dusty, humid, and oily environment. Other features include adjustable voltage/current and wide working temperature range (-40~+70°C).
HEP-600C Features:
- Charger for lead-acid batteries (flooded, Gel and AGM) and Li-ion batteries (lithium iron and lithium manganese)
- 3 stage charging
- Universal AC input / Full range (up to 305VAC)
- Built-in active PFC function
- No load power consumption <0.5W at remote OFF
- High efficiency up to 95.5%
- Fanless design, cooling by free air convection
- Aluminum case and filling with heat-conducted glue
- Withstand 10G vibration test
- -40 ~+70°C wide operating range
- Output voltage and output current can be adjusted through internal potentiometer
- Protection: Short circuit / Over voltage / Over temperature
- 3 color LED loading indicator
- Operating altitude up to 5000 meters
- Complies with UL/EN62368-1 and EN60335-1/2-29 (dual certification)
- High reliability
- 6 years warranty
Available models of HEP :
- 14.4V: HEP-600C-12
- 28.8V: HEP-600C-24
- 57.6V: HEP-600C-48
Applications:
- Charging batteries at harsh environment
- Robotic lawn mower
- Electronic transportation vehicle
- Recreational craft, personal yacht or workboat
- Telecommunication base station
- Security network and system
- Equipment or instruments with back-up battery
- Charging scooters, bicycles and other electric vehicles
- Camping car, busses, heavy duty truck

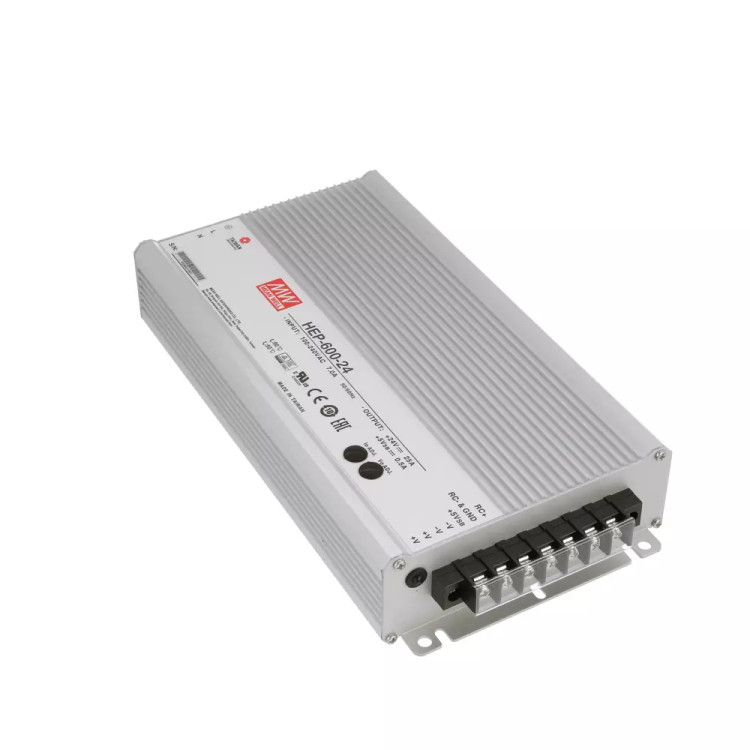

| HEP-600C-48 | ![]() |
|---|
منبع تغذیه HEP-600C-48 یکی از محصولات صنعتی برند MEAN WELL است.
ویژگی
- دارای کیفیت ساخت بالایی است.
- این منبع تغذیه از توان بالایی برخوردار است.
- حفاظت در برابر اتصال کوتاه، اضافه بار، اضافه ولتاژ.
- این منبع تغذیه از راندمان بالایی برخوردار است.
- عمر طولانی و قابلیت اطمینان بالا از ویژگی های این منبع تغذیه است.
- دارای مدار اصلاح ضریب قدرت PFC اکتیو است.
- محدوده دمای کاری گسترده °40- ~ °70 سانتیگراد است.
- برای کار در شرایط محیطی سخت مناسب است.
- بدنه فلزی آلومینیومی با پوشش مقاوم و درجه حفاظتی بالا آن را برای محیطهای بیرونی یا صنعتی بسیار مناسب کرده است.
کاربرد
پروژههایی مثل سیستمهای نورپردازی صنعتی، تجهیزات مخابراتی در فضای باز، یا سیستمهای کنترلی در محیطهای خطرناک، این مدل کاملاً قابل اعتماد است.
گارانتی
این منبع تغذیه دارای 6 سال گارانتی است و از پشتیبانی نمایندگی مینول در ایران برخوردار است.
