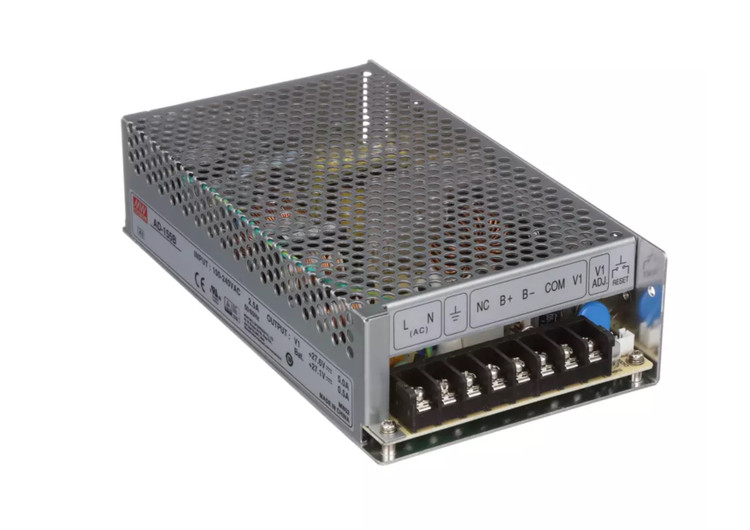

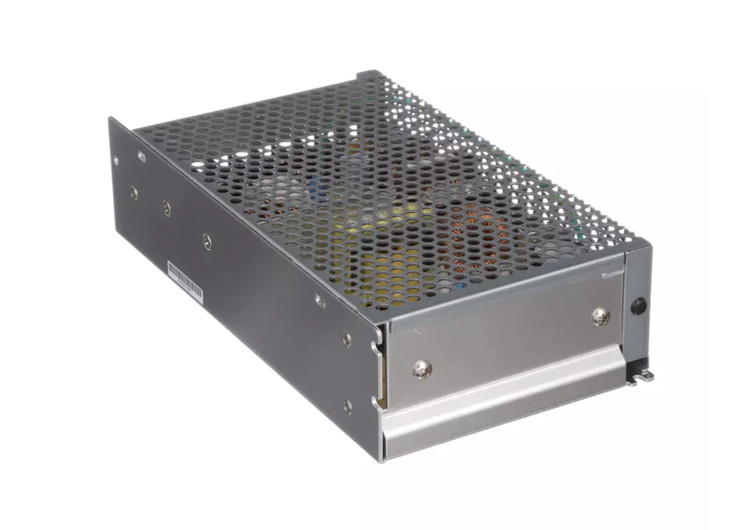

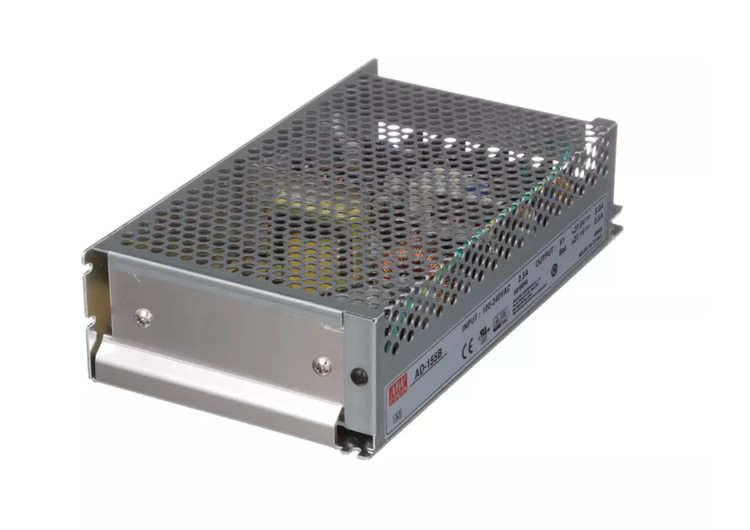

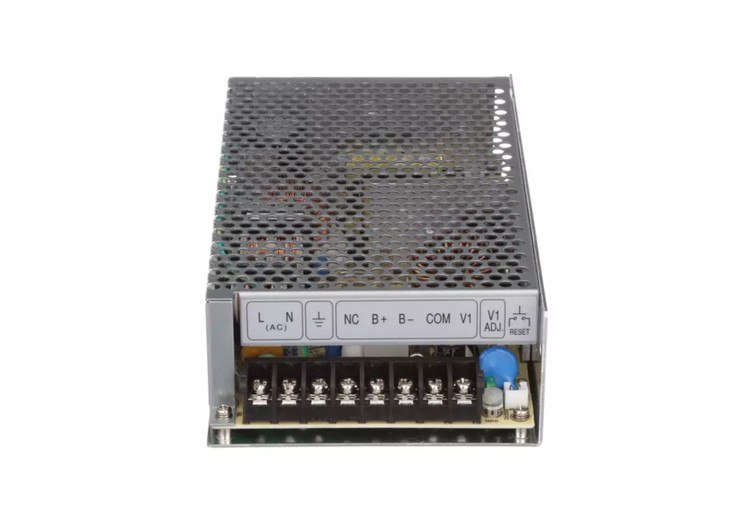

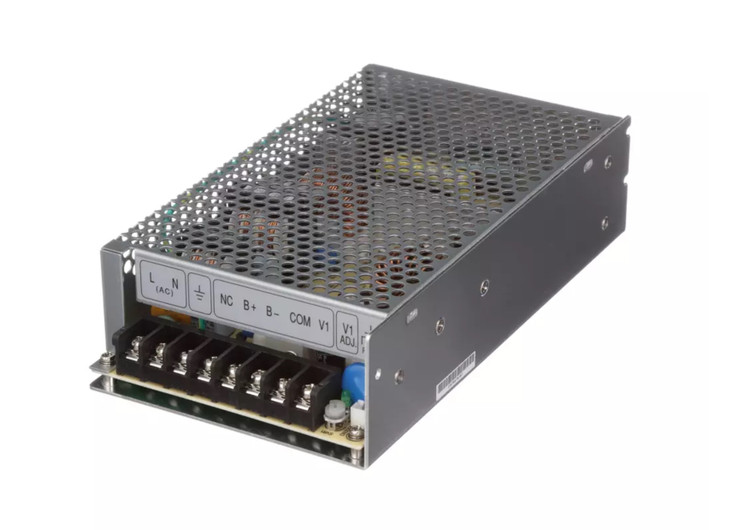

AD-155C منبع تغذیه مینول

MEAN WELL AD Series:

The AD, ADS, ADD series Security power supplies are designed to work in monitoring systems, access control, alarm systems, etc. AD and ADD models with an external battery can work as UPS power supplies. Discharge protection avoids over-discharging the battery.

AD-155C Features:

• Single Output 2 Channel Security Power Supply 54 V, 2.7A/53.5 V, 0.2A; 156.5 Watts (Enclosed Type)
• Universal AC input / Full range 90-264VAC, 124-370VDC
• PFC>0.92 at full load
• Protections: short circuit, over voltage, overload
• Battery low protection/ Battery reverse polarity protection
• Output voltage adjustable 54V: 48V ~ 58V
• Cooling by free air convection
• Working temperature from -10 ~ + 60 ° C
• Compliance with many standards and certificates
• possibility of installation on a DIN rail (using adapters)
• 2 years warranty
• Output Power (W): 156.5
• Ripple & Noise (mV p-p): 150
• Load Regulation (±): 0.5%
• Line Regulation (±): 0.5%
• Efficiency: 84%
• Size (L x W x H) 199 X 110 X 50 (mm)
• 2 years warranty

Available models:

• AD-155A; 13.8V 10.5A, 13.3V 0.5A
• AD-155B; 27.6V 5A, 27.1V 0.5A
• AD-155C; 54V 2.7A, 53.5V 0.2A
